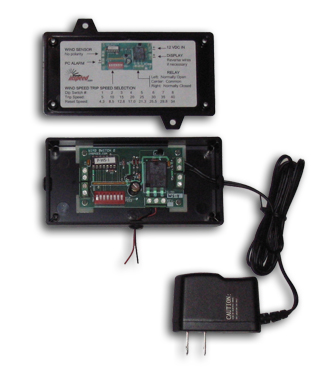

WindSwitch PC Board |
){kind=small}
){kind=small}
){kind=small}
){kind=small}
){kind=small}
The Inspeed WindSwitch is intended for turning electrical devices on and off based on the speed of the wind. A microprocessor is used to measure the speed of the wind, and take a 5-second average. When this 5-second average exceeds the selected trip speed, a single pole, 2-position relay is activated. When the 5-second average wind speed drops below the selected trip speed, the relay is deactivated.
It is fully compatible with the Inspeed Vortex Wind Sensor (not included), which can be situated up to hundreds of feet away.
Also compatible with the Inspeed Display Kit (bicycle speedometer calibrated for wind speed).
The way it works is simple:
If you think you need more capability than this, have a look at the Wind Alarm & Switch
|
 |
|
The Windswitch also works with a an OPTIONAL digital display (bicycle speedometer - see the Pole Mount) so that you can also monitor wind speed.

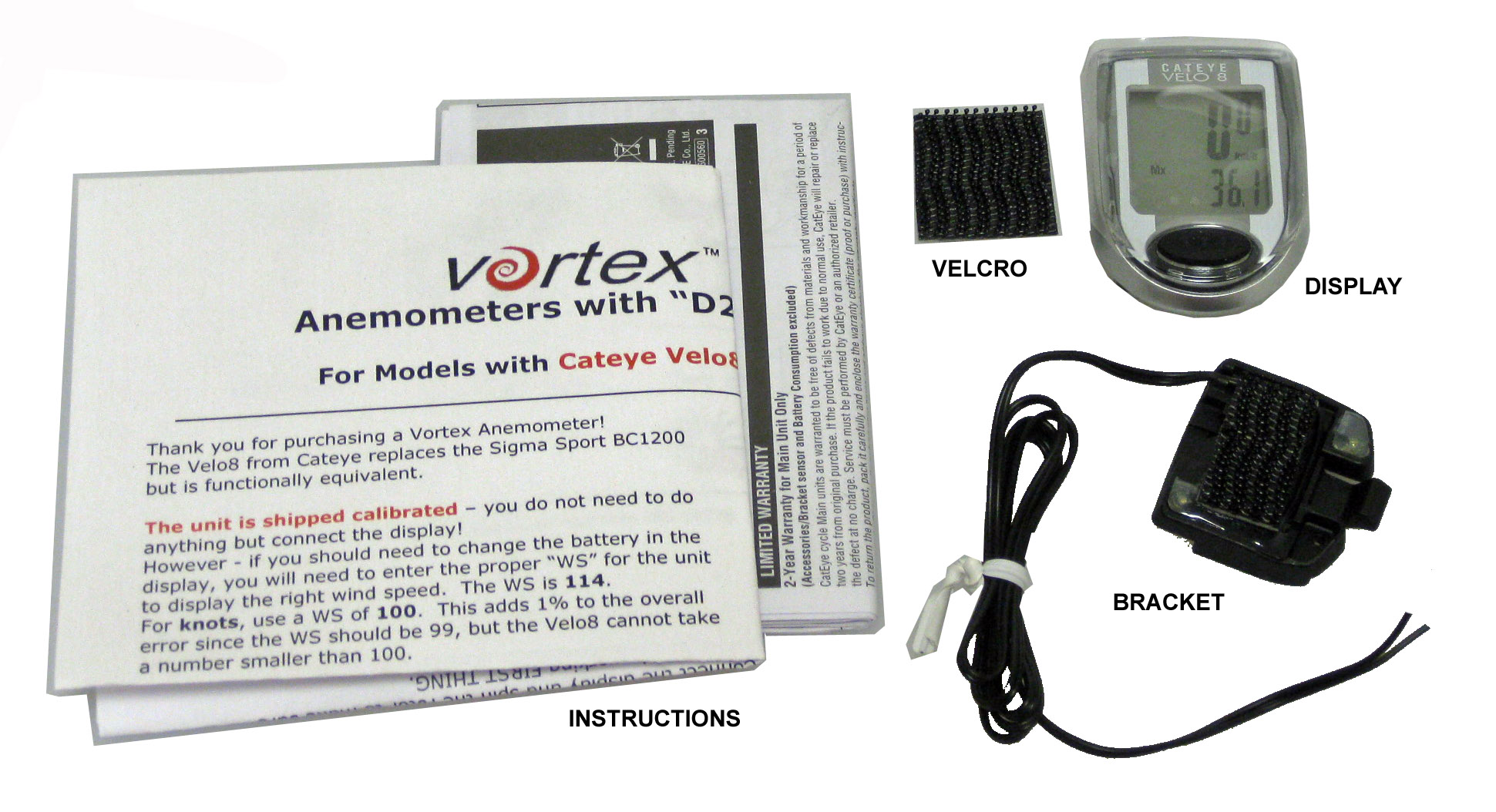

Cateye Velo8 Display Kit
|
Windswitch shown with Wind Sensor (not included) |
| SENSOR TYPE | 3-Cup Lexan rotor (not included). See Vortex Wind Sensor |
| Relay Type | Single Pole, 2-position (one normally open, one normally closed) |
| DISPLAY | None standard. OPTIONAL Bicycle speedometer LCD Digital, Dual Display (mph or km/h); Provides current speed, max speed, and time. |
| UPDATE RATE | Approximately 1Hz (1 second) |
| POWER | 12VDC, from power supply included, which runs on 115VAC Available 220V-115VAC optional converter |
| Enclosure | The PCB and relay are mounted in a plastic enclosure intended for indoor use. Approximate dimensions 6"x4"x2" |
| ACCURACY | +4% from 10 to 50 mph or +/-1mph, whichever is greater |
| TRIP SPEED SELECTION | 8 dip switches |
| TRIP SPEEDS | Relay trips when the 5-second average wind speed exceeds: |
| RESET SPEEDS | Relay resets when the 5-second average wind speed falls below 85% of the trip speed: |
